G100 Generator, T3 Sunbelt Custom

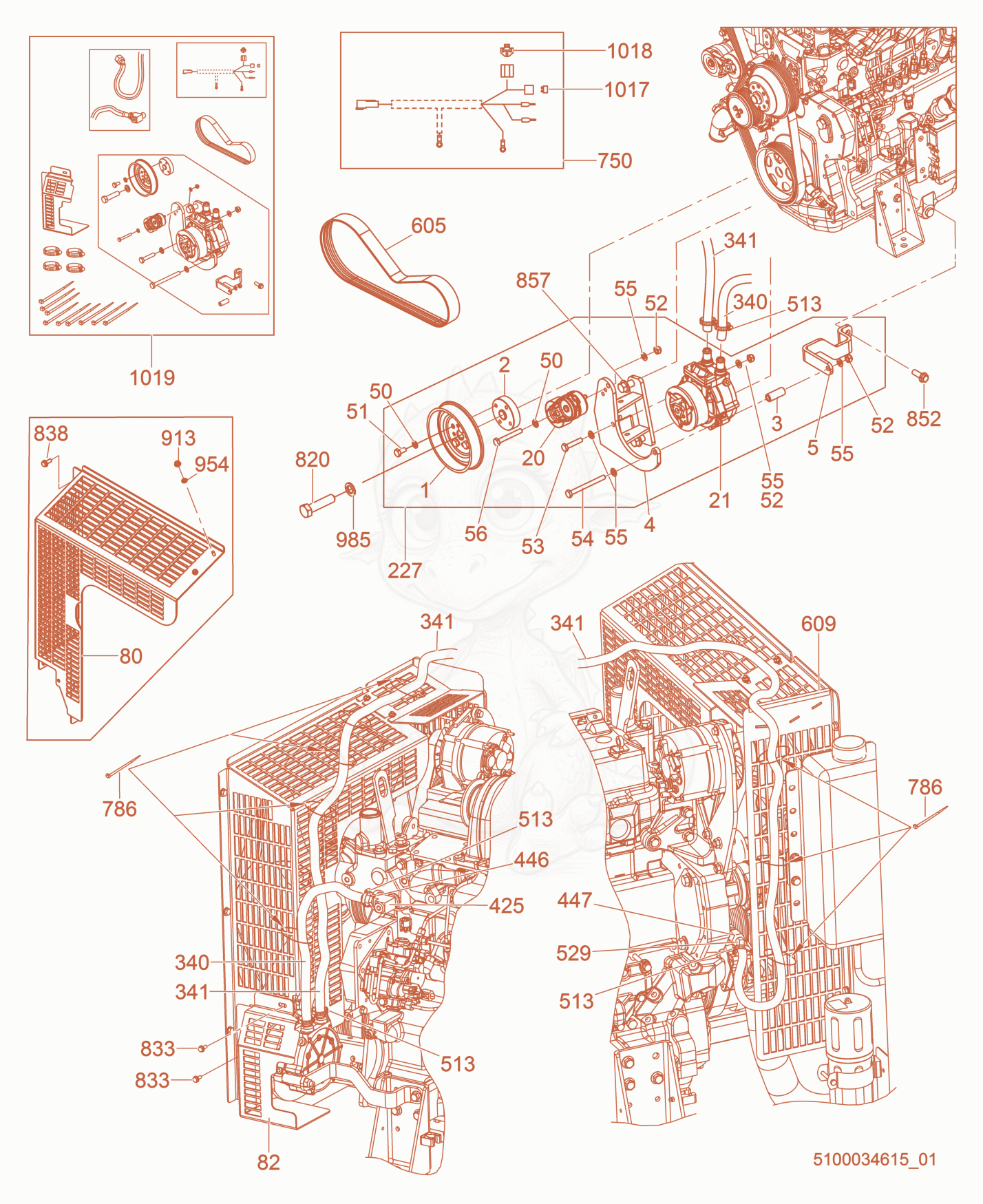

G100 Option - L3 Diagram
- PULLEY- LHG-8PK - 5100034590×1
- Spacer-Pulley, LHG - 5100034591×1
- SPACER-47.6 MM,L3 - 5100034592×1
- MOUNTING BRACKET, LHG - 5100034593×1
- Brace, LHG - 5100034594×1
- TENSIONER, LHG - 5100034595×1
- HEATER-L3 LHG700 - 5100034596×1
- WASHER-LOCK - 5100034597×4
- BOLT-HEX M10-1.5 X 20 - 5100034598×4
- NUT-LOCK, M10-1.5 - 5100034599×3
- BOLT-HEX M10-1.5 X 50 - 5100034600×1
- BOLT-HEX M10-1.5 X 110 - 5100034601×1
- Washer-flat, M10 - 5100034602×4
- BOLT-HEX M10-1.5 X 60 - 5100034603×1
- 805100026351Not stockedFan guard, Left×1
- 805100027770Not stockedFan guard, Left×1
- 825100026353Not stockedGuard×1
- Kit-L3 Unit/Mounting, Med/Lg T3 - 5100026740×1
- Hose-Coolant,5/8ID x 650mm - 5100031167×1
- 3415100031256Not stockedHose-coolant×1
- FITTING-STREET TEE,1/2 NPT - 5000162825×1
- FITTING 5/8 ID HOSE X 1/2 PIPE - 5000159865×1
- ADAPTER M18 MALE X 3/8 NPTF - 5000159864×1
- CLAMP-THREADED,.81-1.5 - 5000028314×1
- FITTING 3/8 NPT,5/8 BARB,45 DG - 5000162827×1
- Belt-V,John Deere L3 - 5100030969×1
- 6095100032363Not stockedSeal-trim×1
- Wiring Harness-L3,MED/ML - 5100027559×1
- WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×14
- SCREW-M20 X 80,12.9,HXHD - 5100031354×1
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×3
- SCREW M12X35-10.9 HX SER FLG - 5000155247×1
- SCREW M16X40-10.9 HX SR FL MZP - 5000155246×2
- NUT-LOCK M6 HEX. - 5000010368×2
- WASHER B6.4 FLAT - 5000010624×2
- WASHER-LOCK B20 - 5000012652×1
- 10175000179976Not stockedFuse×1
- RELAY 12VDC 50A - 5200012171×1
- 10195100031944Not stockedRetrofit Kit- LHG×1
