Vibration Plate DPU 2440F

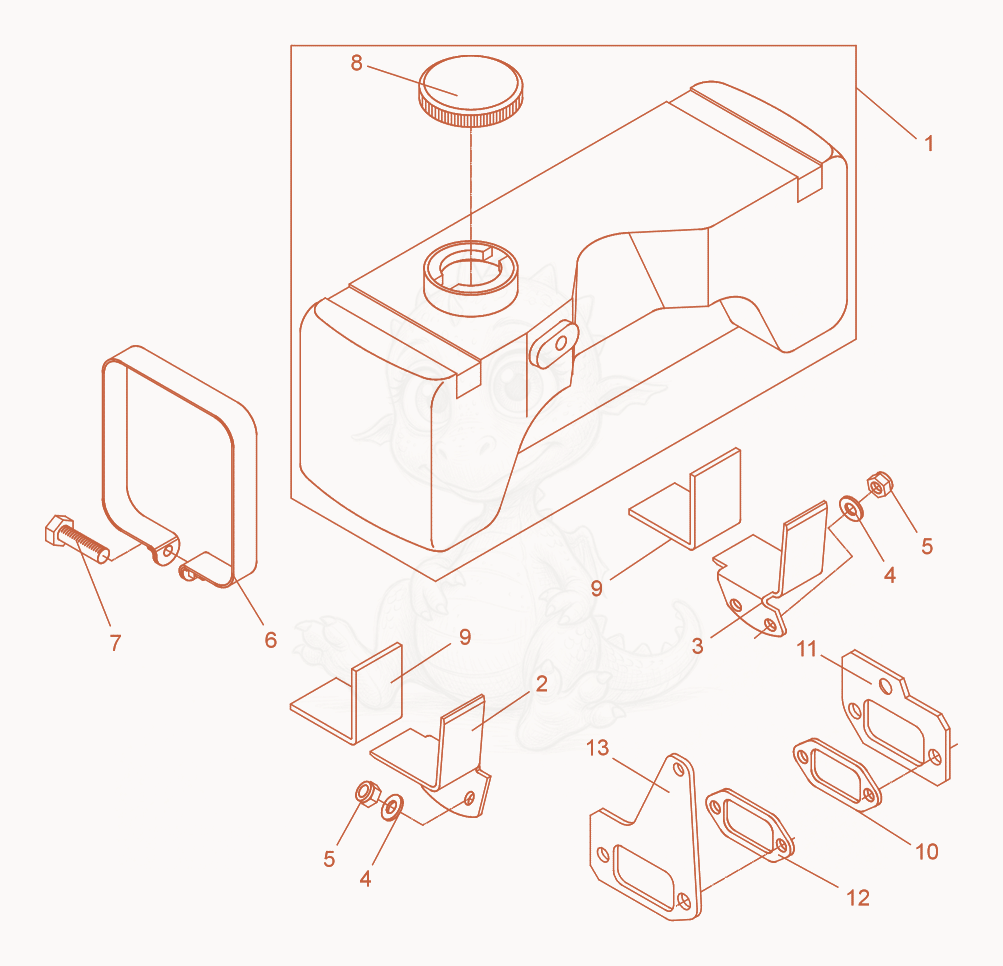

DPU2440F Fuel Tank Diagram

Exploded parts diagram of the Fuel Tank of a Wacker Neuson DPU2440F, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000104092Not stocked
    Fuel tank×1
  • 25000094814Not stocked
    Angle×1
  • 35000094813Not stocked
    Angle×1
  • 45000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×3
  • 55000010367Price
    NUT-LOCK M8 HEX - 5000010367×4
  • 65000034416Not stocked
    Strap×2
  • 75000011451Price
    SCREW M8 X 55 HX.HD. - 5000011451×2
  • 85000104093Price
    CAP-FUEL TANK - 5000104093×1
  • 95000094816Not stocked
    Felt sheet×2
  • 105000034403Not stocked
    Seal×1
  • 115000094817Not stocked
    Cover tin×1
  • 125000039972Not stocked
    Seal×1
  • 135000094818Not stocked
    Cover tin×1
