BS70-2 RAMMER,13 PL SHOE,JPN

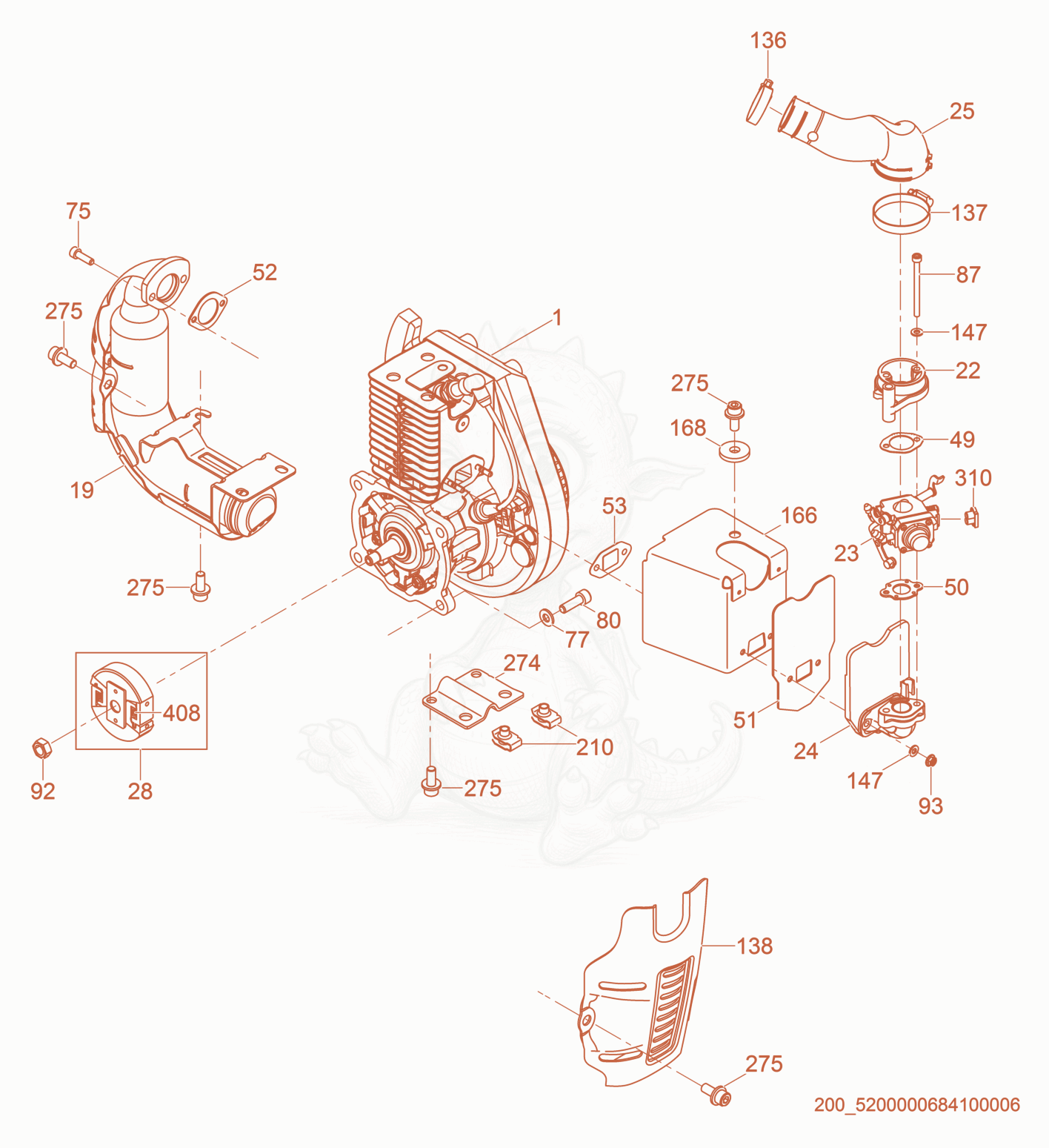

BS70-2 Engine cpl. Diagram

Exploded parts diagram of the Engine cpl. of a Wacker Neuson BS70-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 195000180081Not stocked
    Muffler×1
  • 225100027201Not stocked
    Adapter×1
  • 235000183844Not stocked
    Walbro carburetor×1
  • 245000180100Not stocked
    Carburetor adapter×1
  • 255200002801Not stocked
    Air tube×1
  • 285000157205Price
    CLUTCH-CENTRIFUGAL,80mm X-5100032207 - 5000157205×1
  • 495000084669Not stocked
    Gasket×1
  • 505000183153Not stocked
    Gasket×1
  • 515200016849Not stocked
    Gasket×1
  • 525000175329Not stocked
    Gasket×1
  • 535000114575Not stocked
    Gasket×1
  • 755000112202Price
    SCREW M6X20 12.9,BLOX - 5000112202×2
  • 775000172326Price
    WASHER 8.4,FLAT,200HV - 5000172326×3
  • 805000011542Price
    SCREW M8 X 25 SOC.HD. - 5000011542×3
  • 875000181790Price
    SCREW M5 X 65,SHCS - 5000181790×2
  • 925000010883Price
    NUT M10 8,HEX - 5000010883×1
  • 935000183750Price
    NUT-M5,HX FLG,CL 10,MECH ZP - 5000183750×2
  • 1095000033198Price
    WASHER-LOCK B8 - 5000033198×6
  • 1365000078844Price
    CLAMP,32/50 - 5000078844×1
  • 1375000089701Price
    CLAMP 20-45 WORM DRIVE - 5000089701×1
  • 1385000181846Not stocked
    Guard×1
  • 1475000103211Price
    WASHER-LOCK,5 - 5000103211×4
  • 1665000192874Not stocked
    Heatshield×1
  • 1685001005118Price
    WASHER-STEEL,FLAT - 5001005118×1
  • 2105000110969Price
    NUT-LOCK,M8 CLIP - 5000110969×2
  • 2215000156954Price
    CLAMP-HOSE 1/4 DIA. - 5000156954×1
  • 2745000175330Not stocked
    Muffler bracket×1
  • 2755000011543Price
    SCREW M8 X 20 SOC.HD. - 5000011543×6
  • 3105200007836Not stocked
    Plug×1
  • 4085000172983Price
    Spring - 5000172983×2
